FeynGame

© 2019-2021 by R. Harlander, S.Y. Klein, M. Lipp, and M. Schaaf

Citation: If you use FeynGame in a publication, please refer to the paper

July 2021: FeynGame-2.0β is available! It includes LaTeX labels, shapes, PS/EPS/PDF export, and much more. Use is as easy as before!

Instructions:

  1. Download this tarball, then type
    2.   tar xvfz feyngame-2.0beta.tar.gz
  cd feyngame-2.0beta

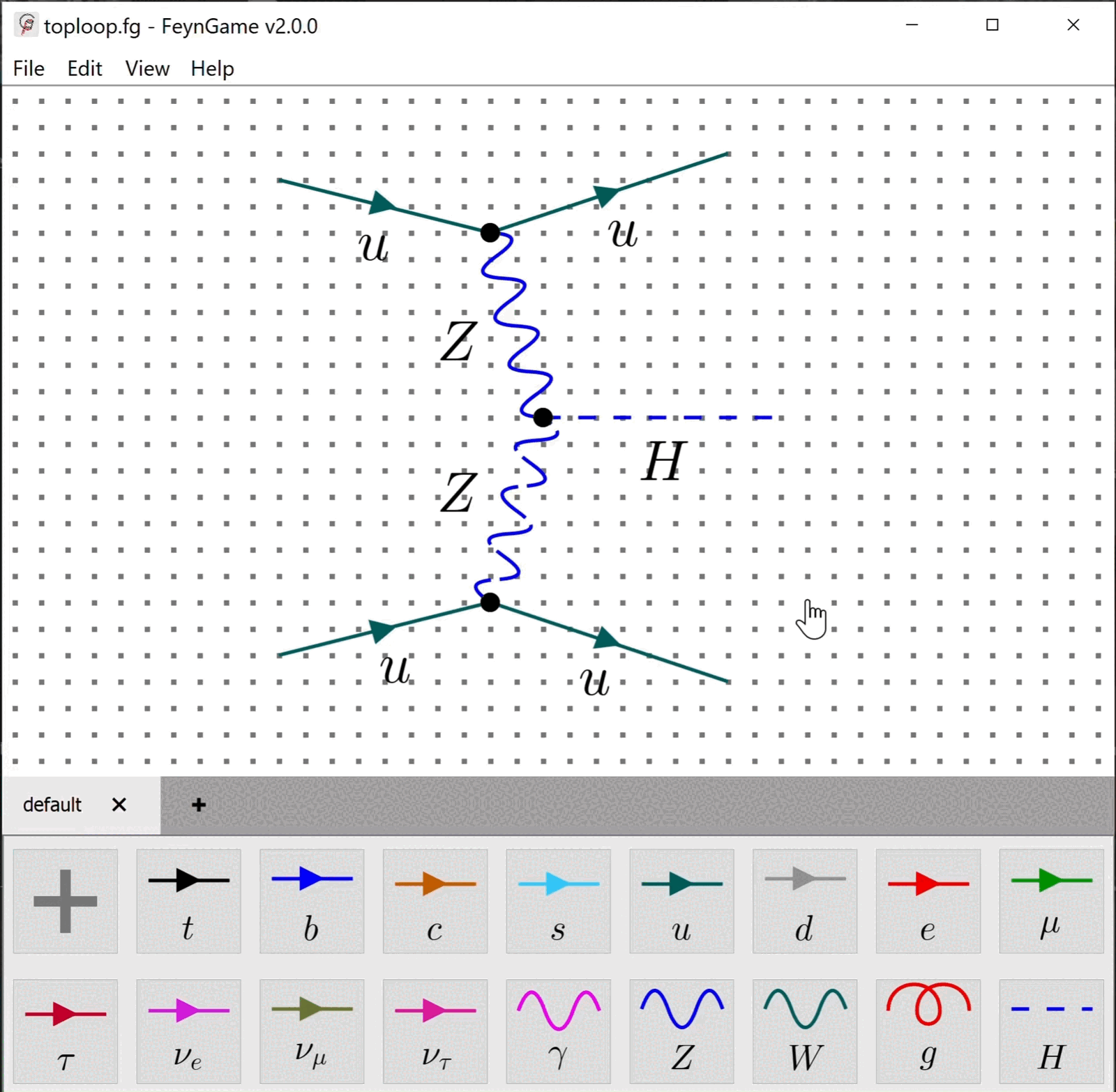

  2. To draw Feynman diagrams, type
      java -jar java/FeynGame-8.jar
    and select "Drawing Mode", or
      java -jar java/FeynGame-8.jar template/models/standard.model
  3. To play, type
      java -jar java/FeynGame-8.jar template/levels/SMLevel.if
How to draw b→sγ in 50 seconds:
Useful hints:
  • Make sure you have a less-than-midieval version of Java (8 or later, that is)
  • The menu bar of the main window may be useful.
  • Pressing "e" opens EditFrame which allows you to change many options for the selected object.
  • FeynGame is published under the GNU General Public Licence 3. The source code can be obtained from here.
